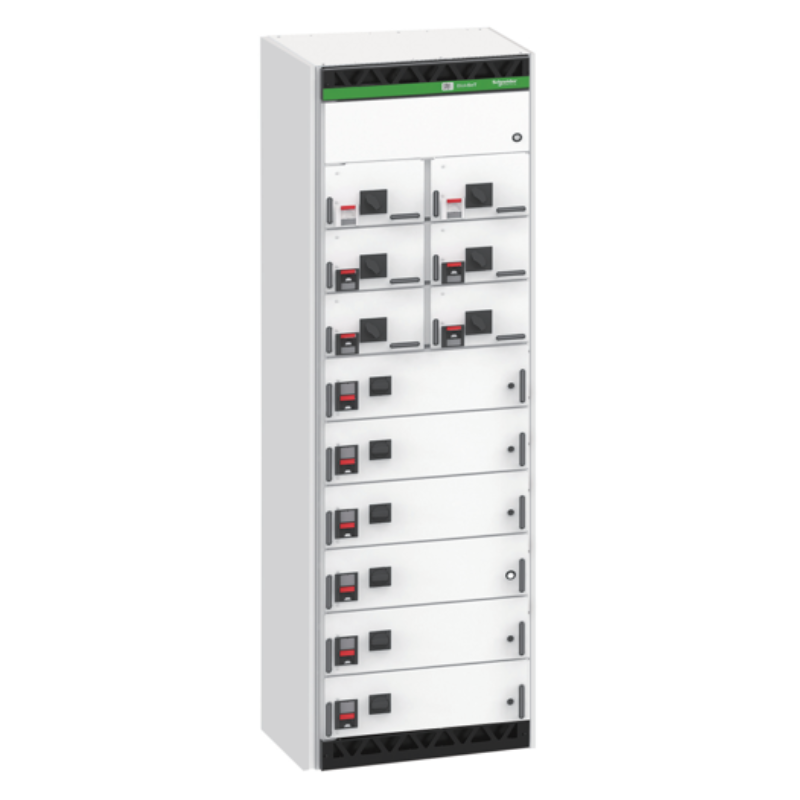

BlokSet Low Voltage Switchboard
BlokSeT is a high-quality switchgear that complies with both international and domestic standards. The product has been certified by the internationally recognized ASEFA testing laboratory and undergoes regular inspections by the Schneider Electric Testing Laboratory. With its outstanding performance, high reliability, complete solutions, and leading intelligent distribution solutions, BlokSeT has gained full recognition from both international and domestic users. Its applications span across the fields of construction, industry, energy, and infrastructure, reflecting the international advanced level of low-voltage switchgear.
- Overview
- Recommended Products
Product Overview:
BlokSeT is a high-quality switchgear that complies with both international and domestic standards. The product has been certified by the internationally recognized ASEFA testing laboratory and undergoes regular inspections by the Schneider Electric Testing Laboratory. With its outstanding performance, high reliability, complete solutions, and leading intelligent distribution solutions, BlokSeT has gained full recognition from both international and domestic users. Its applications span across the fields of construction, industry, energy, and infrastructure, reflecting the international advanced level of low-voltage switchgear.
Specifications and Parameters:
|
Rated Insulation Voltage |
1000V (AC) |
|
Rated Operating Voltage |
Up to 690V (AC) |
|
Rated Impulse Withstand Voltage |
12kV |
|
Overvoltage Category |
IV |
|
Main Busbar Rated Current |
Up to 7000A |
|
Rated Short-Time Withstand Current |
100KA for 1s |
|
Separation Type |
1/2b/3b/4b |
|
Protection Degree |
IP20-54 |
|
Internal Arc Fault Protection (IEC 61641 V3) |
85kA for 0.5s (Ipc arc), 65kA for 0.3s (Ip arc) |
|
Seismic Resistance |
Up to GB/T2424.25, 9-degree seismic intensity |
|
Functional Unit Type |
Fixed type, withdrawable type |
|
Cabinet Types |
Fixed cabinet, drawer cabinet, reactive power compensation cabinet, dual power supply cabinet, variable frequency soft starter cabinet |
Product Features:
❖ Outstanding electrical performance that meets all customer requirements.
❖ Anti-corrosion and salt spray environment solutions, meeting the harsh on-site environmental demands.
❖ Excellent EMC (electromagnetic compatibility) performance, meeting the anti-interference requirements for on-site operations.
❖ Withstand arc faults up to 85kA for 0.5s and seismic resistance up to 9 degrees, meeting the safety and vibration resistance requirements for on-site operations and maintenance.
Compliant Standards:
❖ IEC61439
❖ IEC60529
❖ IEC60947
❖ IEC60721-3-3
❖ IEC60068-3-3
❖ IEC61641-V3
❖ IEC60721-3-3
❖ GB/T 7251.8-2020
❖ GB/T 2424.25
❖ GB/T 18859
