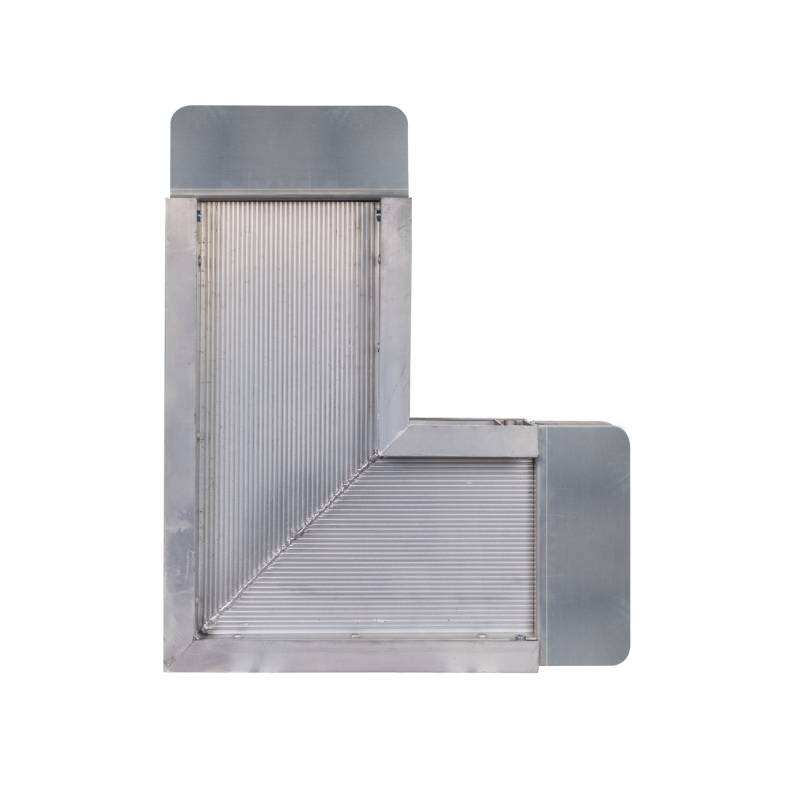

Enclosed Busbar
Enclosed Bus Duct (also known as Enclosed Busbar) is a bus system consisting of a metal shell (steel plate, aluminum plate, or fireproof board) for protection, conductive bars (copper bars, aluminum bars, or copper-aluminum composite materials) as current carriers, insulation materials, related fixings, and accessories. It includes phase-separated enclosed busbars, common box busbars, and cable busbars, widely used in power plants, substations, and industrial and civil power sources.
- Overview
- Recommended Products
Product Overview:
Enclosed Bus Duct (also known as Enclosed Busbar) is a bus system consisting of a metal shell (steel plate, aluminum plate, or fireproof board) for protection, conductive bars (copper bars, aluminum bars, or copper-aluminum composite materials) as current carriers, insulation materials, related fixings, and accessories. It includes phase-separated enclosed busbars, common box busbars, and cable busbars, widely used in power plants, substations, and industrial and civil power sources.
Specifications and Parameters:
|
Rated Voltage |
660V AC |
|
Rated Current |
400A~5000A |
|
Rated Frequency |
50Hz |
|
Power Frequency Withstand Voltage |
3500V |
|
Heat Resistance Grade |
B |
|
Insulation Grade |
B |
|
Busbar System |
TN-S, Three-phase five-wire system |
|
Busbar Structure |
Compact type (including plug-in parts) |
|
Protection Level |
IP54 |
|
Plug-in box insertion device |
Silver-plated pins, capable of being inserted and removed over 200 times, good interchangeability and temperature rise compliance. |
|
Conductor Temperature Rise |
The temperature rise of the conductor at the busbar body, busbar connectors, and the connection between the insertion box and busbar plug does not exceed 70°C |
Product Features:
❖ Made with an aluminum-magnesium alloy shell, which is lighter, offers better sealing and heat dissipation, and features a special structure with sufficient mechanical strength to support and protect the busbar system.
❖ The "connector set method" is faster and more efficient.
❖ Special connectors simplify busbar connections and speed up the installation process.
❖ Advanced insulating materials ensure higher safety.
❖ The conductor surface has a multi-layer B-grade (130°C) polymer resin film with a thickness of up to 0.5mm.
Compliant Standards:
❖ GB7251.2-2006
❖ GB7251.2-2005
❖ JB/T9662-1999
❖ GB4208-1993
❖ GB/T5585.2-2005
