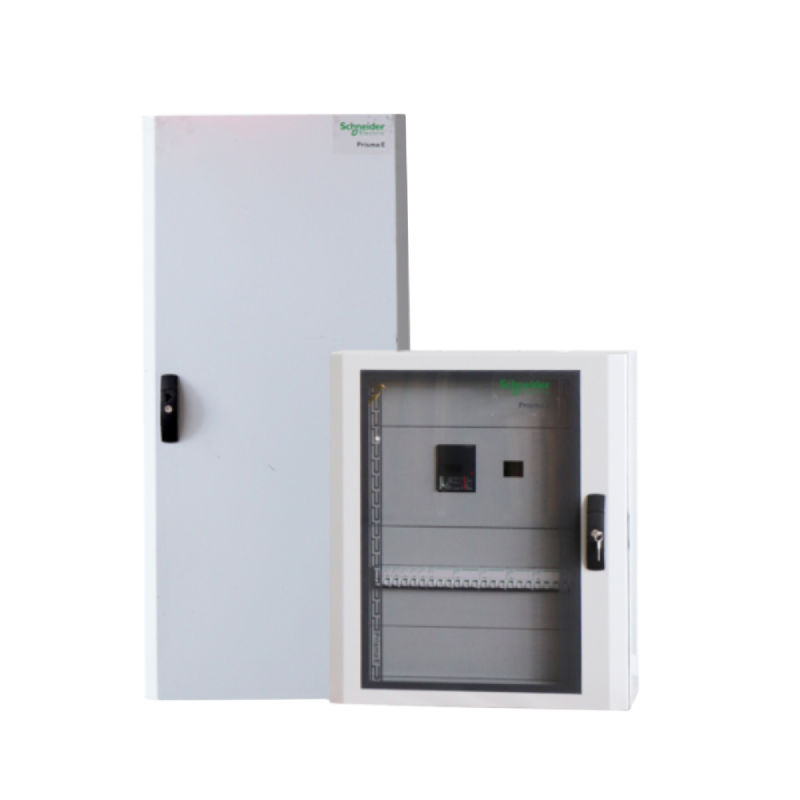

Prisma-E Low Voltage Switchboard
Prisma E, a complete distribution system solution combined with Schneider Electric components, fully utilizes the functionality of the components to meet customer demands for safety, reliability, durability, and aesthetics. It provides tailored distribution system solutions for related industries, including general lighting solutions, air conditioning power solutions, emergency lighting solutions, emergency power (fans, water pumps) solutions, motor control solutions, and variable frequency soft start solutions. These solutions are widely applicable in industries, infrastructure, public utilities, and commercial buildings.
- Overview
- Recommended Products
Product Overview:
Prisma E, a complete distribution system solution combined with Schneider Electric components, fully utilizes the functionality of the components to meet customer demands for safety, reliability, durability, and aesthetics. It provides tailored distribution system solutions for related industries, including general lighting solutions, air conditioning power solutions, emergency lighting solutions, emergency power (fans, water pumps) solutions, motor control solutions, and variable frequency soft start solutions. These solutions are widely applicable in industries, infrastructure, public utilities, and commercial buildings.
Specifications and Parameters:
|
Maximum Rated Current (In) |
630A |
|
Rated Operating Voltage (Ue) |
400V AC |
|
Rated Insulation Voltage (Ui) |
800V AC |
|
Rated Impulse Withstand Voltage (Uimp) |
8kV |
|
Maximum Rated Short-Time Withstand Current (Icw) |
20kA for 1s |
|
Maximum Rated Peak Withstand Current (Ipk) |
40kA |
|
Enclosure Protection Degree |
IP30, IP40, IP31, IP41, IP54 |
|
Enclosure Height Dimensions (mm) |
500, 700, 900, 1100, 1300, 1650, 1850 |
|
Enclosure Width Dimensions (mm) |
600,600+300 |
|
Enclosure Depth Dimensions (mm) |
2000 operations |
|
Grounding Switch Mechanical Life |
236,250,306,506 |
Product Features:
❖ Schneider Electric, an expert in system integration, has created a new generation of standardized distribution systems for the Chinese market.
❖ Based on decades of professional design experience and a wealth of experimental foundations, the design is reliable and the professional quality is trustworthy.
❖ Human safety is fully considered, with both active and passive safety designs, ensuring the safety of use, operation, and maintenance.
❖ Schneider directly supplies core components, with professional quality control to ensure the final product's quality.
Compliant Standards:
❖ GB/T 7251.1
❖ GB/T 7251.2
❖ IEC61439.1
❖ IEC61439.2
❖ IEC60529
